The auto switcher

You’re walking, you go under a bridge, your bitrate falls off a cliff. Chat stares at a frozen frame for forty seconds. The auto switcher is what stops that: it watches your incoming signal and moves your OBS to a fallback scene when the connection goes bad, then comes back once it’s properly stable. You’ll find it in the Auto Switcher tab on the Cloud OBS page. The container has to be running to open it; the scene pickers read the real scene list from your OBS.

​

What it reads

The ingest server measures your incoming stream once a second and hands the switcher three numbers:

• Bitrate in kbps. A floor: below it counts as bad.
• Ping (RTT) in milliseconds. A ceiling.
• Packet loss as a percentage. A ceiling. This is measured as packets that were actually given up on, damage your viewers can see, not raw radio loss that SRT quietly repairs. Cellular connections routinely lose and recover several percent without anyone noticing, so raw loss was never a useful signal.

Each second, every metric is scored good or bad against its limit. On plain RTMP only bitrate arrives, so only bitrate is judged. One more reason to stream SRT or SRTLA.

​

How it decides

It never reacts to one bad second. Everything runs on streaks:

• Falling back: if any one metric has been bad for its trigger count in a row, the switcher leaves your live scene.
• Coming back: all three metrics must be good for the recover count in a row. One bad second resets the whole streak.
• Startup: a fresh stream is checked before it’s allowed on your live scene. Bad from the first second means it opens on the fallback instead of showing chat a mess.
• Offline: if samples stop arriving entirely for the offline timeout, the stream counts as gone, not just bad, and you land on your connection lost scene.

Recovery is deliberately slower than falling back. The ingest holds a 4 second buffer, and during an outage that buffer drains; it needs about its own depth of good delivery to refill. Switch back faster than that and your viewers get a stuttering picture. That’s also why a stream that flaps between scenes every ten seconds is worse than one that waits a few extra seconds to be sure.

​

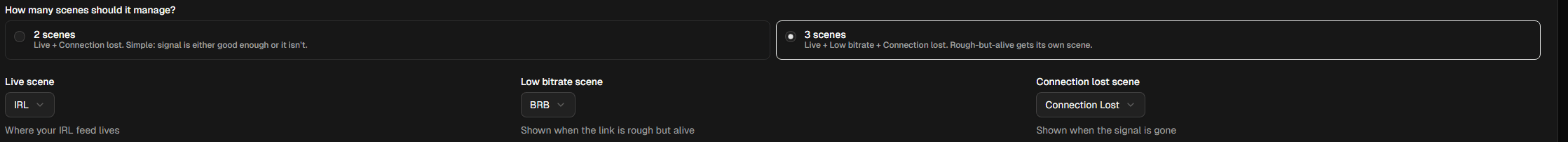

The scenes

Two or three, your choice:

• Live scene: your normal scene with the feed in it.
• Connection lost scene: your BRB screen.
• Low bitrate scene (3-scene setup only): for rough-but-alive, maybe a cropped camera or a “signal is struggling” banner. On a 2-scene setup, rough and gone both land on the connection lost scene.

Start with two if you’re unsure. Point the pickers at real scenes and save. The switcher tracks scenes by their internal id, so renaming a scene in OBS later is fine; deleting one makes the picker tell you it’s gone so you can re-pick.

​

Sensitivity presets

Three presets set all the numbers at once. Balanced is the default and right for most streams. The numbers behind them: The ping ceilings look high next to other tools, and that’s on purpose: the 4 second ingest buffer absorbs latency spikes from tower handovers that would otherwise trigger a switch on an ordinary walk. The bitrate floors look low for the same reason: adaptive encoders like IRL Pro ride down to 500-1000 kbps in bad spots and stay watchable, so the floor is a last-resort signal, not the primary one. Pick Relaxed for mobile in a city, where short dips are normal life. Pick Fast for a connection that’s usually stable, where a drop means something actually broke. Save, and the engine picks the change up within a second, mid-stream, no restart. You don’t need a laptop to change this. The deck has the same three presets in its bottom bar, so you can loosen things up the moment you walk into a packed venue and tighten them again on the way out.

​

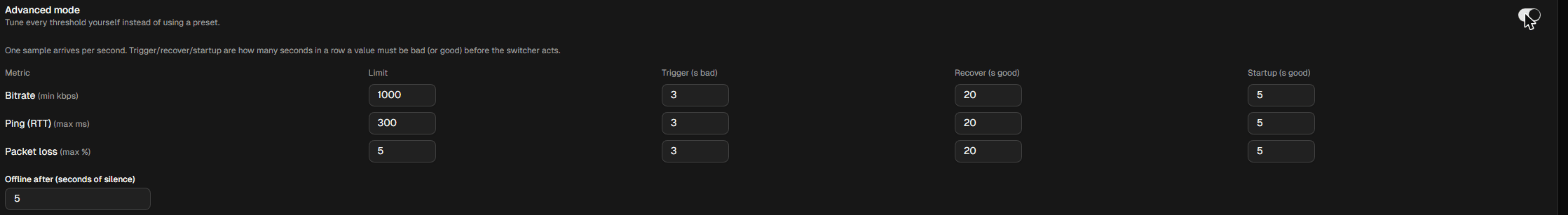

Advanced thresholds

If no preset fits, flip on Advanced mode for the raw table. It starts from whichever preset you had, so flipping the switch changes nothing by itself. One sample arrives per second, so every count in the table is really “this many seconds in a row”.

• Limit: what counts as bad. Bitrate is a floor, ping and loss are ceilings.
• Trigger: seconds a metric must be bad before leaving your live scene.
• Recover: seconds every metric must be good before coming back.
• Startup: the check a new stream passes before it’s allowed on the live scene.
• Offline after: seconds of complete silence that count as gone. Keep it above 5; OBS still has about 4 seconds of buffered good video when stats stop, and cutting away sooner abandons a picture that’s still fine.

When you edit, change one row at a time; change all three and you learn nothing. Some rules of thumb:

• Switches too often? Raise trigger seconds before you loosen limits.
• Comes back too eagerly and drops again? Raise recover. But don’t park it at 20-30 seconds: the good streak resets to zero on a single bad sample, so a huge recover count can leave a perfectly usable stream stuck on the backup scene.
• Keep the bitrate floor well under what you normally stream at, or every small dip becomes a scene change.

​

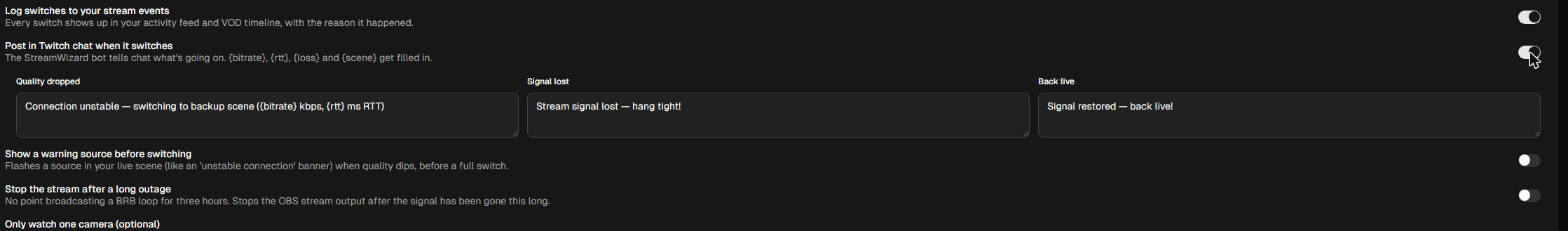

The extras

Four options under the settings, all optional. Logging is the only one on by default.

• Logging puts every switch in your activity feed and VOD timeline with the reason. Useful the morning after, when you want to know whether it was you or the connection.
• Chat notices let the StreamWizard bot tell chat what’s going on so you don’t have to. You write three messages: quality dropped, signal lost, back live. Four placeholders work in all of them: {bitrate} in kbps, {rtt} in ms, {loss} as a percentage, {scene} for where it switched. Chat gets told once per switch, not once per second.
• Warning source is a source in your live scene, an “unstable connection” banner for example, that appears after two bad seconds and disappears after five good ones, without any scene switch. The polite warning before the real fallback.
• Auto stop ends the OBS stream output after a set number of minutes offline, 1 to 120. Nobody needs three hours of BRB loop. Your container and scenes are left alone.

There’s also a field to pin one stream key label, so the switcher judges that stream only and ignores anything else arriving at your ingest.

​

The status card

While a stream is arriving, the status card shows the state, which stream key it’s watching, and three progress bars, one per metric. Live, the bars fill toward a switch; recovering, they fill toward going back. The same status is available as an overlay widget in the Overlay Editor if you want it on stream. The quickest way in is New Overlay → Auto switcher monitor, which drops the widget on a canvas already set up for it. It hides itself while everything is healthy, so it costs you nothing on screen until it has something to say. A red Problem line is the engine’s last error, usually a scene switch that couldn’t reach your OBS. It retries every few seconds by itself; if it sticks, restart the container.

​

Watching it from the street

You can’t see the status card while you’re out filming. The Auto switcher monitor overlay puts the same information on your phone’s own preview, visible to you and not to your viewers. See switcher status on your phone.

​

When nothing switches

Work down this list:

1. Is the switcher on, and did you actually hit save?
2. Are scenes picked? Without a live and a connection lost scene there’s nothing to switch between.
3. Does the badge say OBS Connected?
4. Is a stream arriving, or does the status card say “Waiting for stream”?
5. Are you holding a scene? “Held by you” means it’s standing down on purpose.
6. “This scene no longer exists” means you deleted it in OBS. Pick a new one and save.

Still stuck? Open a ticket in our Discord. We answer fast, usually faster than your stream takes to reconnect under a bridge. Bring your stream key label and roughly when it happened, and we’ll dig through the logs with you.
